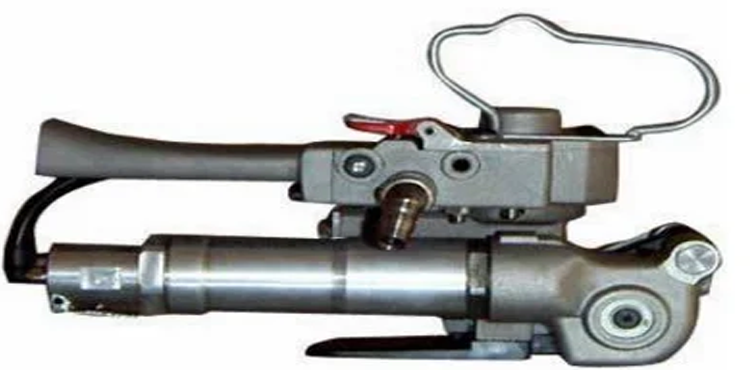

Pneumatic Operated Pet Strapping Tool
A flourishing enterprise in this domain, engaged in presenting a wide range of Pneumatic Operated Pet Strapping Tool. The offered tool is developed in accordance with industry norms and quality parameters. In the offered tool, our professionals use the approved material during the manufacturing process. In addition, this tool can be built and developed according to the specification provided by the clients. Furthermore, our professionals opt for strict quality inspection made on the tool to ensure high performance.
Product Details:
| Model | YPV -19 |
|---|---|
| Tool Weight | 3.8 Kg |
| Over all Length | 275 mm |
| Tool Width | 115 mm |
| Tool Height | 130 mm |
| Strap Material | Polyester |
| Strap Width | 13 - 16 mm |
| Strap Thickness | Conventional: 0.8- 0.9 mm; Light gauge: 0.5 - 0.7 mm |
| Air pressure | 0.5 - 0.7 Mpa |
| Max strap tension | 980 - 2500 N (at 0.63 Mpa) |
Additional Details:
- Max strap tension: H type = Max. 2744 N (at 0.63 Mpa); M type = Max. 1764 N (at 0.63 Mpa); L type + Max. 980 N (at 0.63 Mpa)
- Strap Width: 13mm-19mm : Heavy gauge 1.0-1.5mm.
- Strap thickness: Conventional: 0.8 - 0.9 mm; Light gauge: 0.5 - 0.7 mm.
