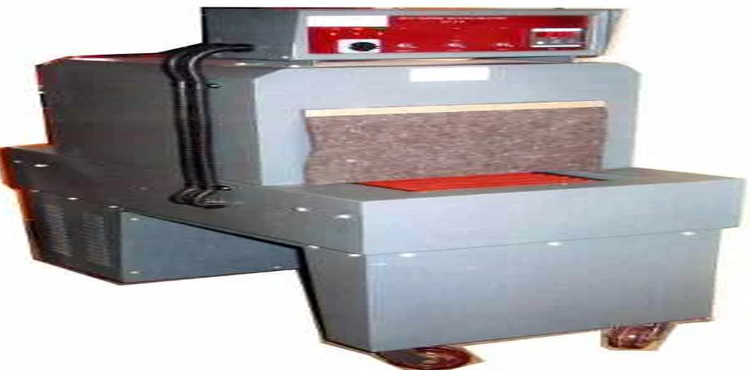

Shrink Tunnel
Shrink Wrapping Machine: To wrap your product PVC/ LDPE shrinkable film our machines can wrap the item of different shapes & sizes which can conveniently pass through the specified tunnel dimensions.
It is suitable for gift’s confectionery, bottle, cosmetics etc. It’s a high speed sealing machine and high equipment sealing. The complete process is visible & is furnished with L- sealer shaped. The automatic process of shrinkable pouch complete with the web- sealer. We provide very high quality of the heat-sealing machine and branded shrink machine. It’s very easy to use.
Product Details:
| Model | APSW200 |
|---|---|
| Power | 220V, AC, Single Phase |
| Over All Dimension ( W x H x L) | 1200 x 500 x 1100 mm |
| Heater | 6 Kw |
| Temperature | 3000 degree C (Max) |
| Motor (AC) | 1/2 HP or 1/4 HP |
| Speed (Tunnel Time) | Fix 15 Sec |
Specifications :
| Specification | Model No. APSW200 | Model No. APSW300 | Model No. APSW400 |
|---|---|---|---|
| Job Max Size (W x H x L) | 150 x 180 x Without limit | 250 x 225 x Without limit | 350 x 280 x Without limit |
| Power | AC Single Phase 220V | AC 3 Phase 440V | AC 3 Phase 440V |
| Over All Dimension (W x H x L) | 1200 x 500 x 1100 | 1525 x 600 x 1150 | 1525 x 700 x 1250 |
| Heater (KW) | 6 KW | 9 KW | 9 KW |
| Temp ( 0C ) | 3000 C Max | 4000 C Max | 4000 C Max |
| Motor (AC) | 1/2 HP or 1/4 HP | 1/2 HP or 1/4 HP | 1/2 HP or 1/4 HP |
| Over All Dimension (W x H x L) | Fix 15 Sec | Variable 0 To 25 | Variable 0 To 25 |
